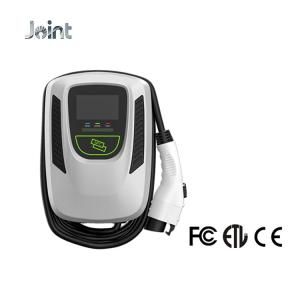

ETL OCPP Wifi 4G Mode 3 Home Car Charging Station

Name: ETL OCPP Wifi 4G Mode 3 Home Car Charging Station
Brand: Joint
Price: 250 USD

Brand Name : Joint

Model Number : EVC10-07C1C

Certification : ETL, CE

Place of Origin : China

MOQ : 1

Price : USD 250-450/SET

Payment Terms : T/T, L/C, Western Union

Supply Ability : 30000 pcs/Month

Delivery Time : 28 Days

Packaging Details : Standard Package

Power Supply : 1Phase+N+PE or 3 Phase

IP Rating : IP65

Working Temperature : -30C°~+50C°

Current : 32A

Frequency : 50/60Hz

Rated Power : 7KW

Charge Connector : Type A+DC6mA (Type B)

LED Indicator : Green/Blue/Red

Weight : 24.3lb-94.8lb

RFID Reader : Optional

LCD Display : 4.3" LCD screen

Optional : 4G Module, WIFI, MID Certified Meter

Contact Now

CE Certification OCPP Wifi 4G Mode 3 Home EV Charging Station

JNT-EVC10 Wallbox charger allows for the fastest possible 22kW AC charging – almost 10 times faster than from a wall socket. In practice, this means approx 1h charge time for Leaf 1 (24kWh), 2h charge for Leaf 2 (40kWh), ~ 4h for Tesla Model S (85 kWh)

If your installation does not allow you to supply this current, the charger will simply work with the highest available power, e.g. 7.2kW or 22kW. If one day it is possible to increase the power of the installation, there will be no need to change the charger. JNT-EVC10 is ready for the future now.

Extremely easy assembly

In the set with the charger, you will get everything necessary for quick and complete mounting of the charger on the wall, among others drilling template, a set of screws and dowels and a holder for convenient cable storage on the wall.

EV Charger Station Features:

Model Name	EVC10-07C1S		EVC10-07C1C	EVC10-22C1S	EVC10-22C1C
Input Rating	230±10%Vac (One Phase)			400±10%Vac (Three Phase)
Frequency	50Hz
Input Current	32A
Output Current	32A
User Authentication	RFID (ISO 14443)
External	LAN (optional) + 4G (optional) or Wi-Fi (optional)
Internal	OCPP 1.6 JSON (OCPP 2.0 compatible)
Operating Temperature	-22˚F~122˚F(-30˚C~50˚C)
Humidity	Max. 95% RH
Altitude	≦ 2000m
IP Level	IP 54		IP65 for box	IP 54	IP65 for box
Dimension(WxDxH)	350x250x175mm (13.8″x9.8″x6.9″)		350x250x130mm (13.8″x9.8″x5.1″)	350x250x175mm (13.8″x9.8″x6.9″)	350x250x130mm (13.8″x9.8″x5.1″)
Charging Outlet	One Socket	5M Cable		One Socket	5M Cable
RCD	RCD TYPE B
Charging Interface	Type 2 Plug
Multiple Protection	Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault, Current leakage protection
